SFA-5421 High Level Bottle Depalletizer Machine - SA FWU INDUSTRY CO., LTD

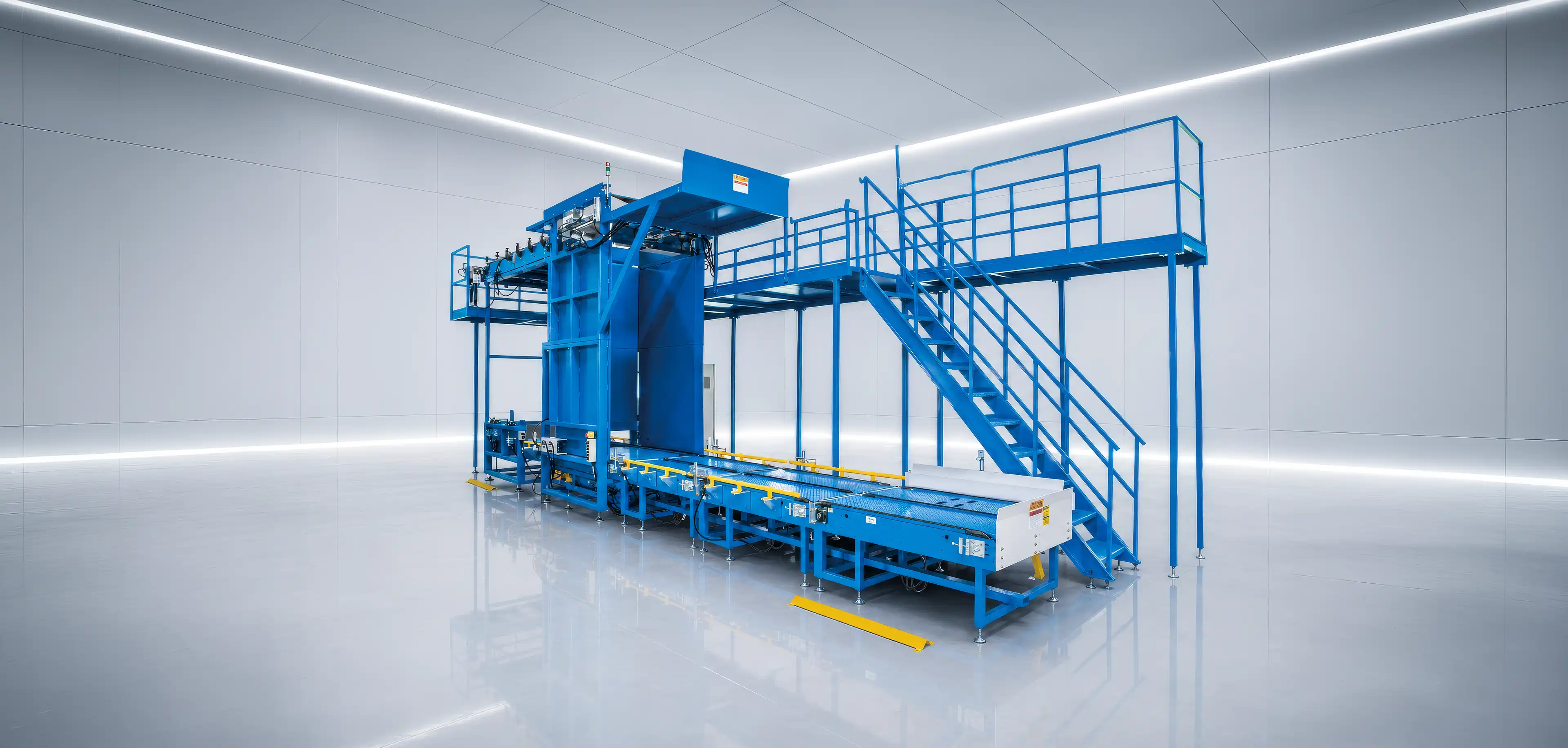

High Level Bottle Depalletizer Machine

High Level Bottle Depalletizer Machine

Depalletizer

SFA-5421

High Level Bottle Depalletizer Machine

SUMMARY

SFA-5421 high-level bottle depalletizer handles cans and PE, PET or glass bottles with automatic sheet removal and a 30–40 second-per-layer cycle.

FEATURES

Features


●	Sa Fwu De-Palletisers are capable of de-palletising a multitude of bottle types in a method, which is gentle on the products. The large processing range comprises Cans, PE, PET and Glass Bottles etc.
●	The lifting unit of the base machine is equipped with a frequency-controlled, maintenance-free toothed belt drive to lower the energy requirement.
●	Automatic Paper take-out system combine with automatic stacking system to eliminate troublesome take out by manual operation. And also provides convenience for moving by forklift.
●	Empty bottle pallet operates automatically with frequency-controlled, assuring smooth motion without damaging on empty bottles.
●	Human-Computer Interaction Design control panel both in English and Chinese version provides automatic display for error message and position guide for operation.

SYSTEM ADVANTAGES

System Advantages


●	High operational safety due to robust standard construction.
●	Economical continuous operation due to high degree of availability.
●	Short changeover times for product changes.
●	Easy operation.
●	Low maintenance.

SPECIFICATIONS

MODEL	SFA-5421
Power Source	Adapted to Local Electricity Sources at Installation Place
Power Capacity	17 KW
Air Pressure	5.0~7.0 kg/cm2
Machine Dimensions	L : 9718 x W : 4269 x H : 4096 mm
Machine Weight	4200 Kg
Processing Capacity	30~40 sec./Layer
Operation Control	English/Chinese Display System for User-Friendly Interface
Suitable Processing Package	Can, PE, PET, Glass Bottle etc...
