SFA-2105-N Automatic High Speed Divider Machine - SA FWU INDUSTRY CO., LTD

Automatic High Speed Divider Machine

Automatic High Speed Divider Machine

Divider

SFA-2105-N

Automatic High Speed Divider Machine

SUMMARY

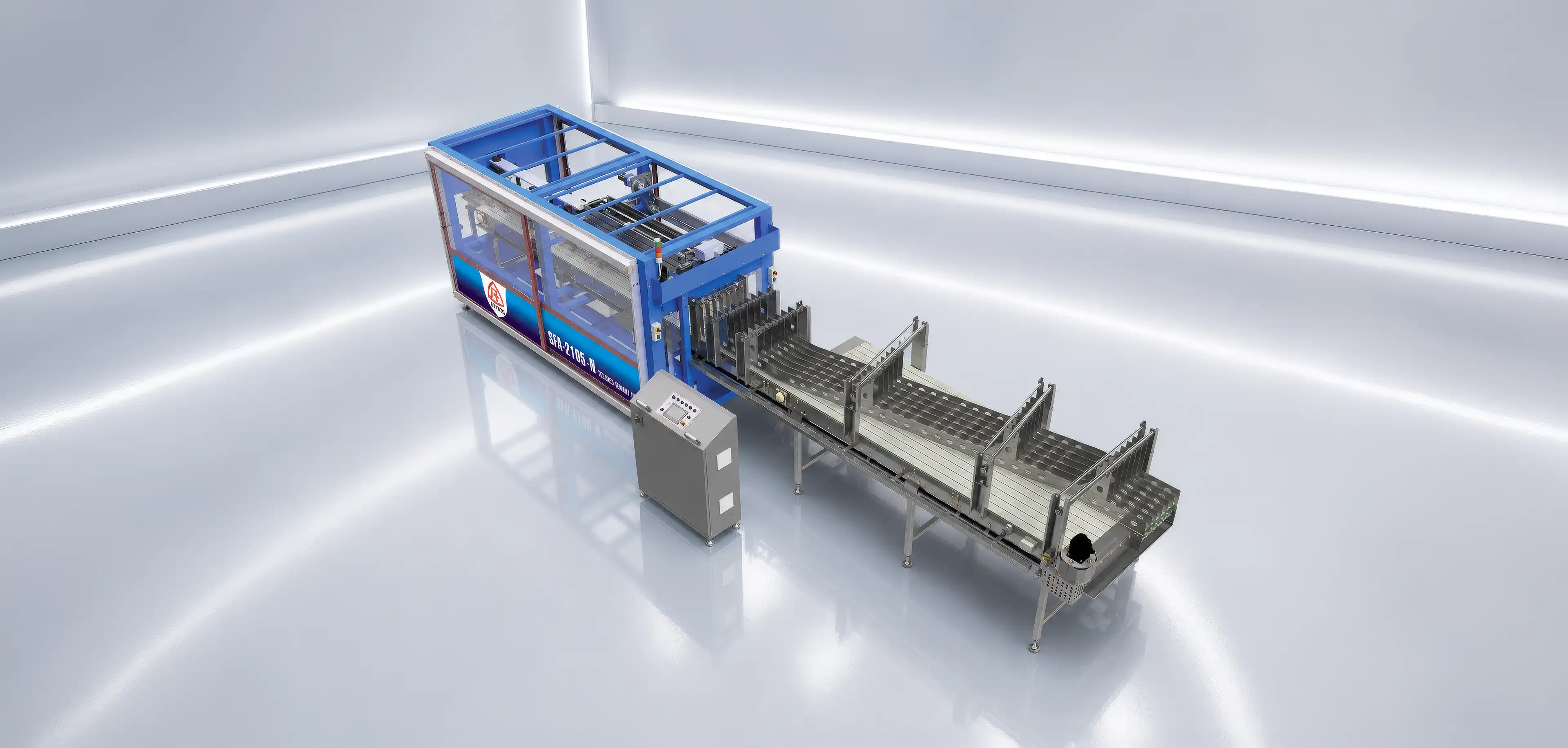

SFA-2105-N high-speed divider aligns bottles or cans into 2–6 lanes, with servo control, HMI and program memory at up to 750 bottles/min.

FEATURES

Features


●	The maximum speed of divider : 750 bottles/min.
●	Number of dividing line : 2-6 line.
●	Human-Computer Interaction Design.
●	The Operation panel can save a few sets of data, easy to set and read the data for different type of bottles.
●	Use Servo Motor for dividing, set up alignment automatically.
●	The interior setting of P.L.C. can be amended and set from the operation screen.
●	Minimization of the changeover times, in order to quickly switch from a production to another one.
●	Easy and intuitive start and control operations and user-friendly technology.
●	All making parts equipped with nozzles for lubrication and for easy maintenance.

SPECIFICATIONS

MODEL	SFA-2105-N
Power Source	Adapted to Local Electricity Sources at Installation Place
Power Capacity	4 KW
Air Pressure	5.0~7.0 kg/cm2
Machine Dimensions	L : 6000 x W : 1600 x H : 2500 mm
Machine Weight	1500 Kg
Processing Capacity	750 bottles/min
Operation Control	English/Chinese Display System for User-Friendly Interface
