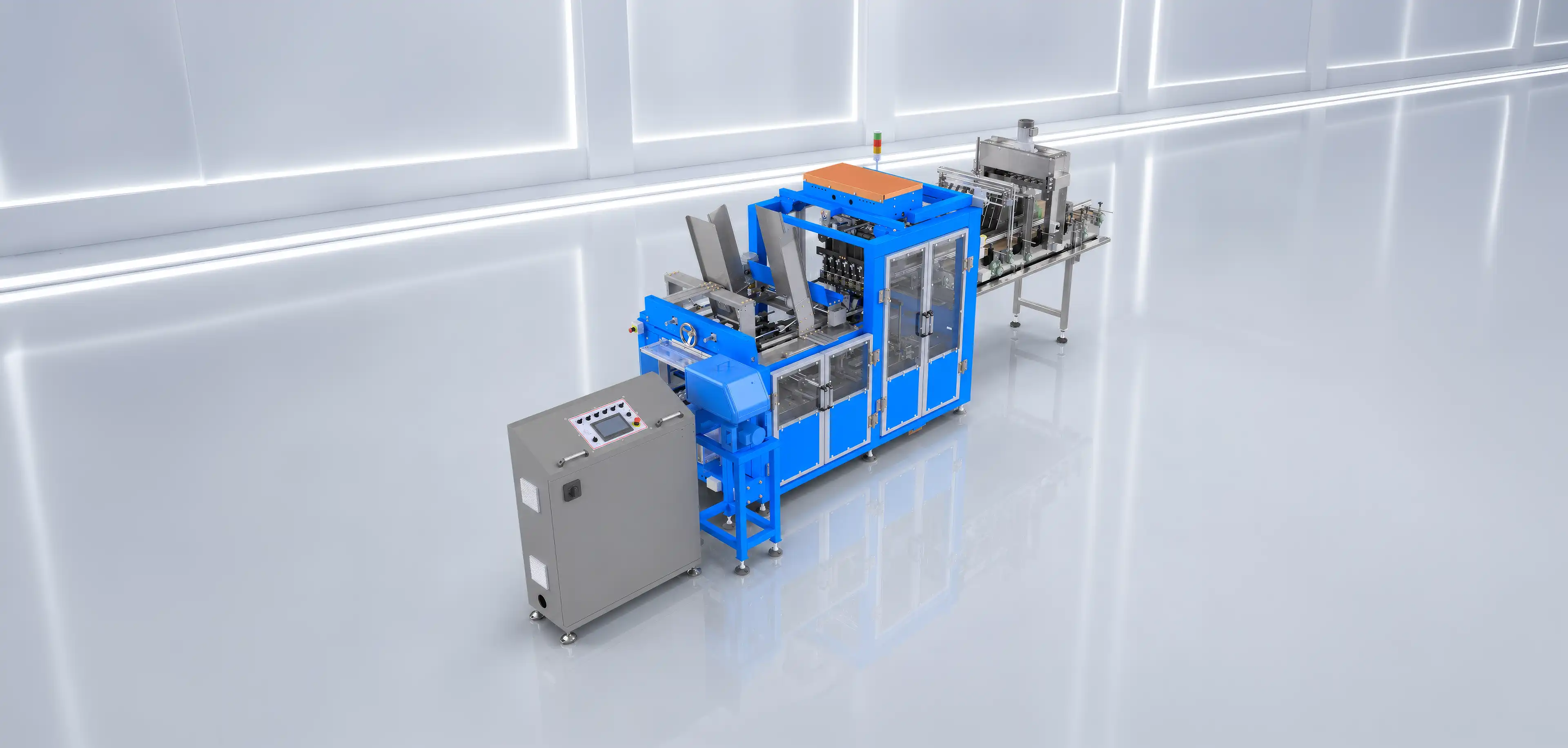

SFA-2224-L-SM AUTOMATIC TRAY PACKER
SFA-2224-L-SM AUTOMATIC TRAY PACKER

Divider

SFA-2224-L-SM

SFA-2224-L-SM AUTOMATIC TRAY PACKER

SUMMARY

Human-Computer Interaction Design.；Tray Packing operation.；The large processing range comprises PE, PET, PP Bottles, Cans and aluminum cans etc.；Parameters can be set and modified

FEATURES

Features


● Human-Computer Interaction Design.
● Tray Packing operation.
● The large processing range comprises PE, PET, PP Bottles, Cans and aluminum cans etc.
● Parameters can be set and modified on the screen.
● Glue Spraying distance is control by encoder, ensuring consistent glue spraying length on each carton and permit adjustment and memorizing at any time.
● Minimization of the changeover times, in order to quickly Switch from a production to another one.
● All movable parts are provided with grease nozzle for lubrication. Hard-to-reach bearings located at the machine bottom are centralized lubrication at outside through oil tubes.
● CE Certification.

SPECIFICATIONS

MODEL SFA-2224-L-SM
Power Source Adapted to Local Electricity Sources at Installation Place
Power Capacity 15 KW
Air Pressure 6.0 kg/cm2
Machine Dimensions L : 6145 x W : 1780 x H : 2107 mm
Machine Weight 1500 Kg
Air Flow Consumption 320 L/m
Processing Capacity 25~30 cases/min
Operation Control English/Chinese Display System for User-Friendly Interface
Packaging Material Corrugated Paper
Hotmelt Glue Nordson
