SFA-6801 Automatic Carton Erector ( Sealer ) - SA FWU INDUSTRY CO., LTD

Automatic Carton Erector / Sealer

Automatic Carton Erector / Sealer

Divider

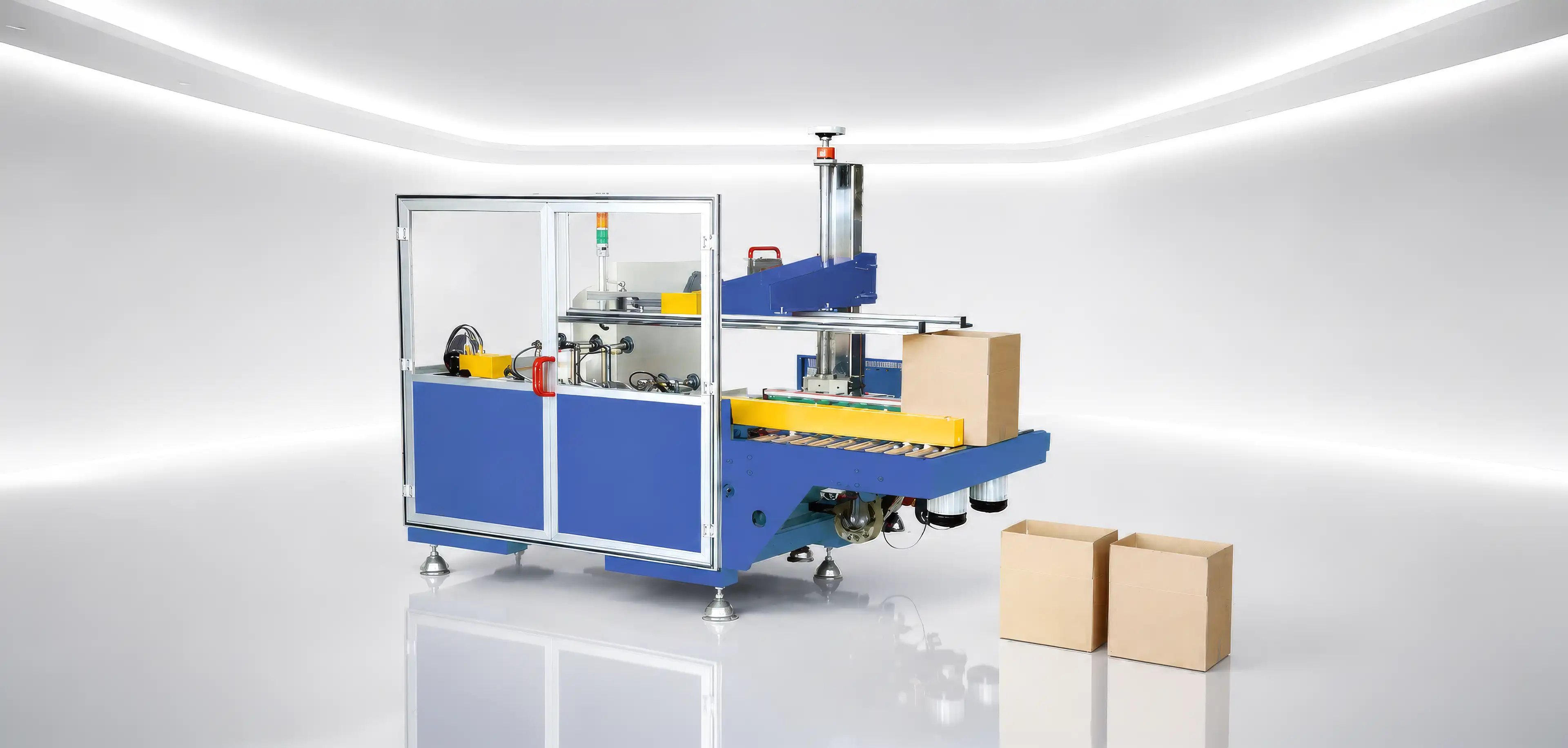

SFA-6801

Automatic Carton Erector / Sealer

SUMMARY

SFA-6801 carton erector forms, folds and seals large or special cartons, with PLC control, low-carton alarm and output of 10–14 cases/min.

FEATURES

Features


●	Fit for automatic system; operating forming folding and sealing action accomplish at a time.
●	Horizontal type storage can supply the un-opened carton anytime.
●	Carton erector is easy to adjust for different size of carton.
●	PLC Controlled- Easy to alter the program.
●	Humanizing designed, Easy to operate.
●	Assembly with safety signal device on the machine and the deficiency alarm at the carton storage.
●	Suitable for large cartons or special mode.

SPECIFICATIONS

MODEL	SFA-6801
Power Source	Adapted to Local Electricity Sources at Installation Place
Air Pressure	4.0~6.0 kg/cm2
Machine Dimensions	L : 3700 x W : 1750 x H : 1915 mm
Processing Capacity	10 ~ 14 cases/baskets per min
Operation Control	English/Chinese Display System for User-Friendly Interface
