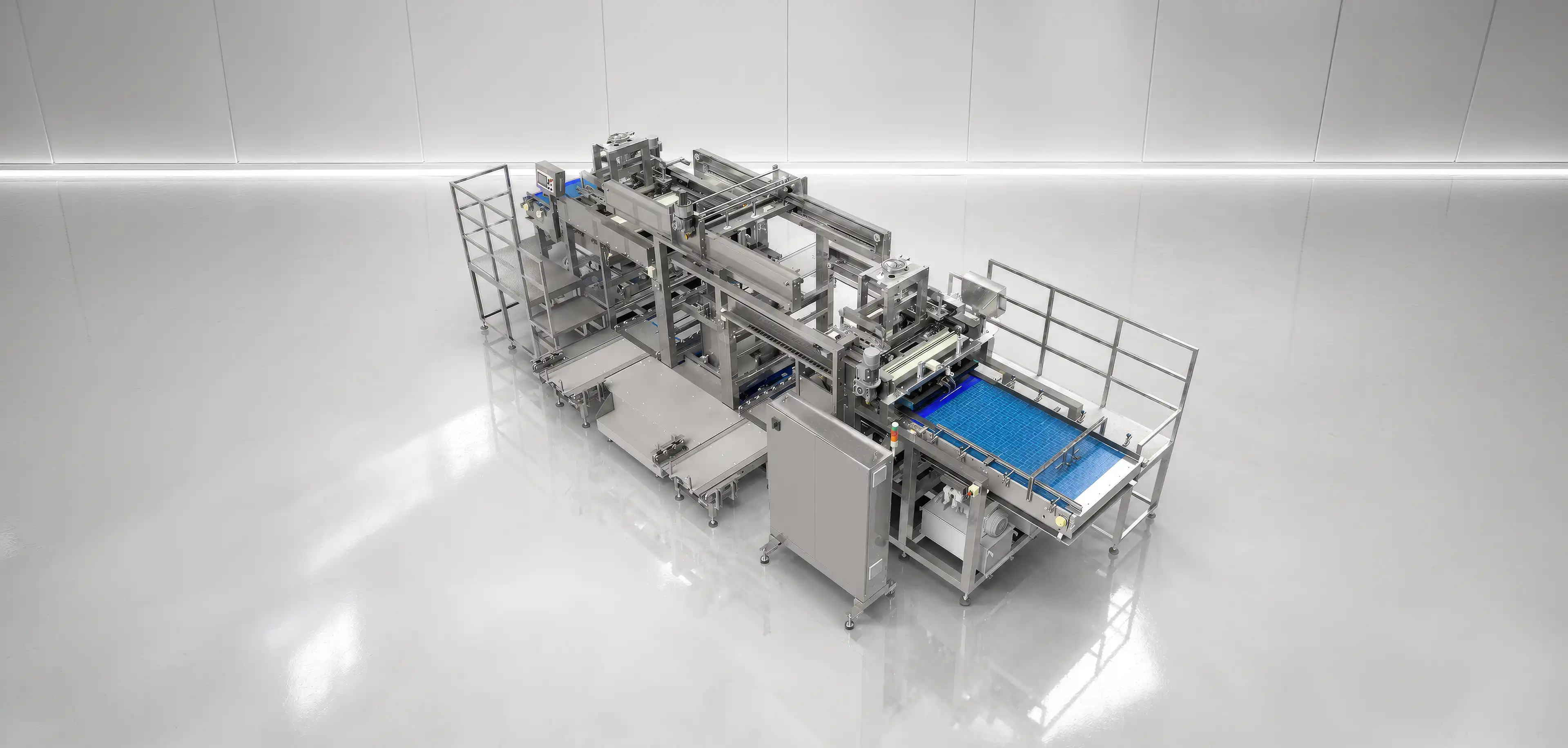

Name: SFA-5437 Cage Cart Orienting Machine ( Loader & Un Loader )
Brand: SA FWU INDUSTRY CO., LTD
SKU: SFA-5437

Loader & Unloader

SFA-5437

Cage Cart Orienting Machine ( Loader & Un Loader )

SUMMARY

This machine is special for categories of coffee, bottles, milk cans, fish and meat cans o other containers packing use sterilized by high temperature method for handling. TECHNOLO

FEATURES

Features


●	This machine is special for categories of coffee, bottles, milk cans, fish and meat cans o other containers packing use sterilized by high temperature method for handling.

TECHNOLOGICAL PROCESSES

●	Products are placed in order based on size pushing to the cage cart for the pile up. Each tray is placed by a pallet for cans separation.
	Cage cart with products piling up in order is pushed to sterilizer for high temperature handling.
	After the sterilization, products are depalletized layer by layer for next packing procedure.

SYSTEM ADVANTAGES

System Advantages


●	High operational safety due to robust standard construction.
●	Economical continuous operation due to high degree of availability.
●	Easy operation.
●	Low maintenance.

SPECIFICATIONS

MODEL	SFA-5437
Power Source	Adapted to Local Electricity Sources at Installation Place
Power Capacity	6 KW
Air Pressure	5.0~7.0 kg/cm2
Machine Dimensions	L : 8770 x W : 5445 x H : 2376 mm
Machine Weight	3400 kg
Processing Capacity	500~600 bottles/min
Operation Control	English/Chinese Display System for User-Friendly Interface
