SFA-2125-L (Pull Type) Automatic Wrap Around Case Packer - SA FWU INDUSTRY CO., LTD

Automatic Wrap Around Case Packer

Automatic Wrap Around Case Packer

Packaging Machine

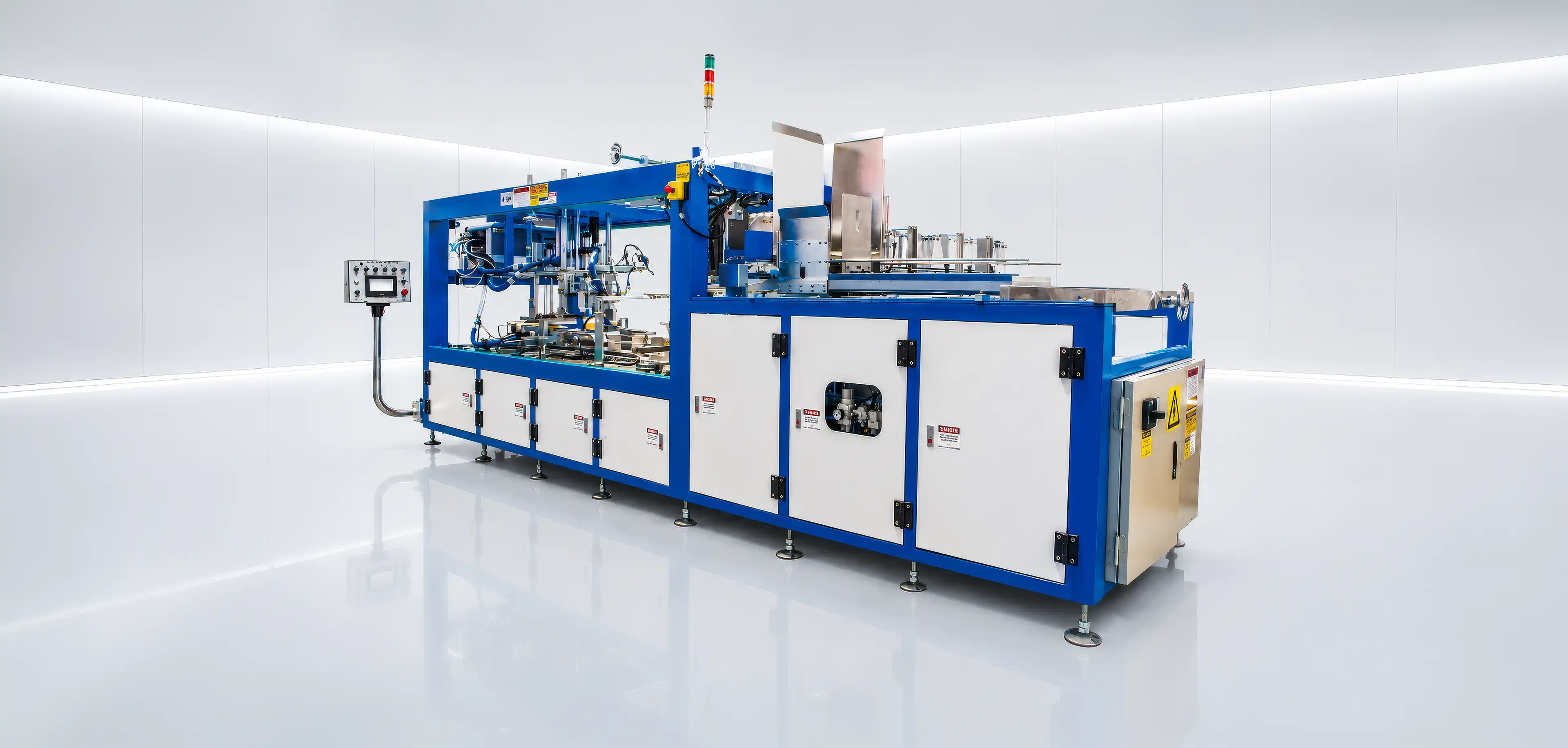

SFA-2125-L (Pull Type)

Automatic Wrap Around Case Packer

SUMMARY

SFA-2125-L Pull Type wrap-around packer handles bottles and cans in cases or trays, with mold-free operation, HMI, precise gluing and CE certification.

FEATURES

Features


●	Human-Computer Interaction Design.
●	Fully Wrap Around carton packing and Tray Packing operation.
●	The large processing range comprises PVC, PE, PET, PP Bottles, Glass Bottles, Cans and aluminum cans etc.
●	Parameters can be set and modified on the screen.
●	Glue Spraying distance is control by encoder, ensuring consistent glue spraying length on each carton and permit adjustment and memorizing at any time.
●	Minimization of the changeover times, in order to quickly Switch from a production to another one.
●	All movable parts are provided with grease nozzle for lubrication. Hard-to-reach bearings located at the machine bottom are centralized lubrication at outside through oil tubes.

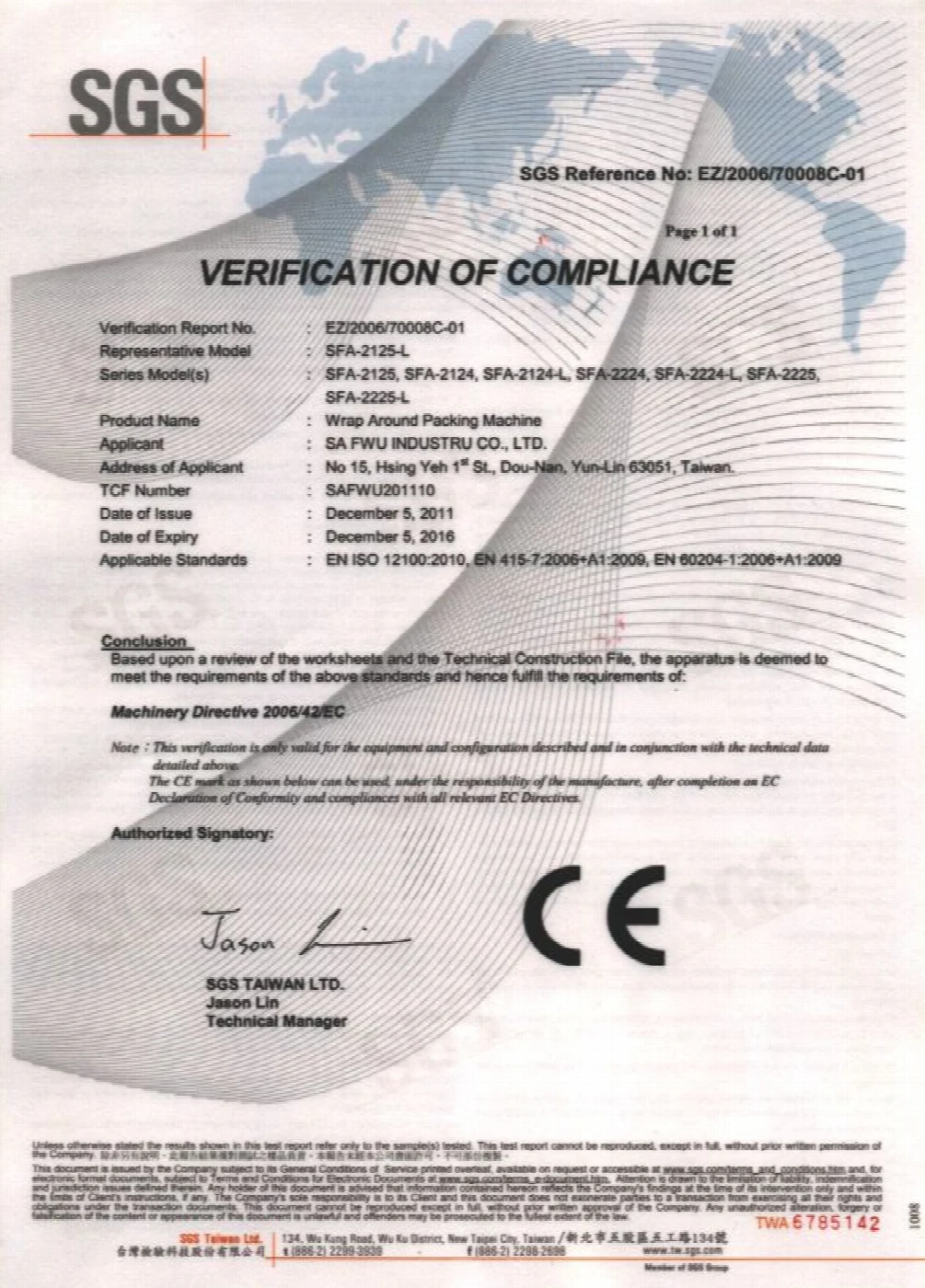

●	CE Certification.

SPECIFICATIONS

MODEL	SFA-2125-L ( PULL TYPE )
Power Source	Adapted to Local Electricity Sources at Installation Place
Power Capacity	8 KW
Air Pressure	5.0~7.0 kg/cm2
Machine Dimensions	L : 6070 x W : 2800 x H : 2006 mm
Machine Weight	1500 Kg
Processing Capacity	13 cases/min
Operation Control	English/Chinese Display System for User-Friendly Interface
Suitable Processing Package	Mold Free Application
