SFA-SD30 Automatic High Speed Case Packer - SA FWU INDUSTRY CO., LTD

Automatic High Speed Case Packer

Automatic High Speed Case Packer

Packaging Machine

SFA-SD30

Automatic High Speed Case Packer

SUMMARY

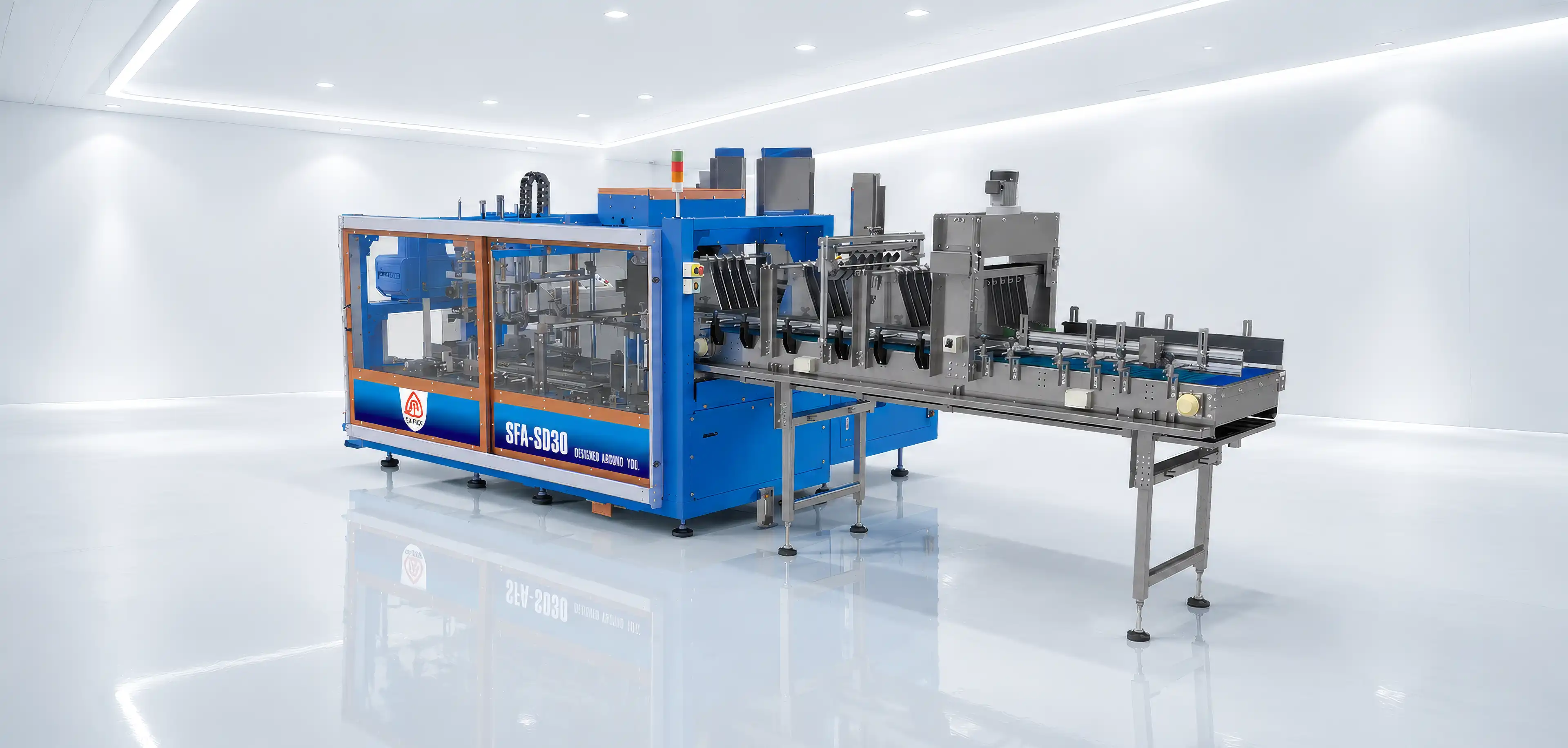

SFA-SD30 automatic high-speed case packer supports wrap-around carton and tray packing with HMI controls at up to 30 cartons per minute.

FEATURES

Features


●	Human-Computer Interaction Design.
●	Fully Wrap Around carton packaging and Tray Packing Combination Operation.
●	Parameters can be set and modified on the screen.
●	Wheel handle for minimization of changeover times, in order to quiktly switch from a production to another one.
●	All moveable parts and Electrical wiring are cover up for safety issue.
●	Machine operation with less noise.
●	Missing/Fallen loose product detection before the tray/case forming unit.
●	Glue spraying distance is control by encoder, ensuring consistent glue .

OPTIONAL

Optional

Glue Saving Controller

●

Glue spacing can be adjusted, Optimizing the allocation of the spray.

●

High Accuracy/Stabilized spray control.
Multi-Program Memory.
Highest efficiency improvement, Save 30~50% Glue Using per year.

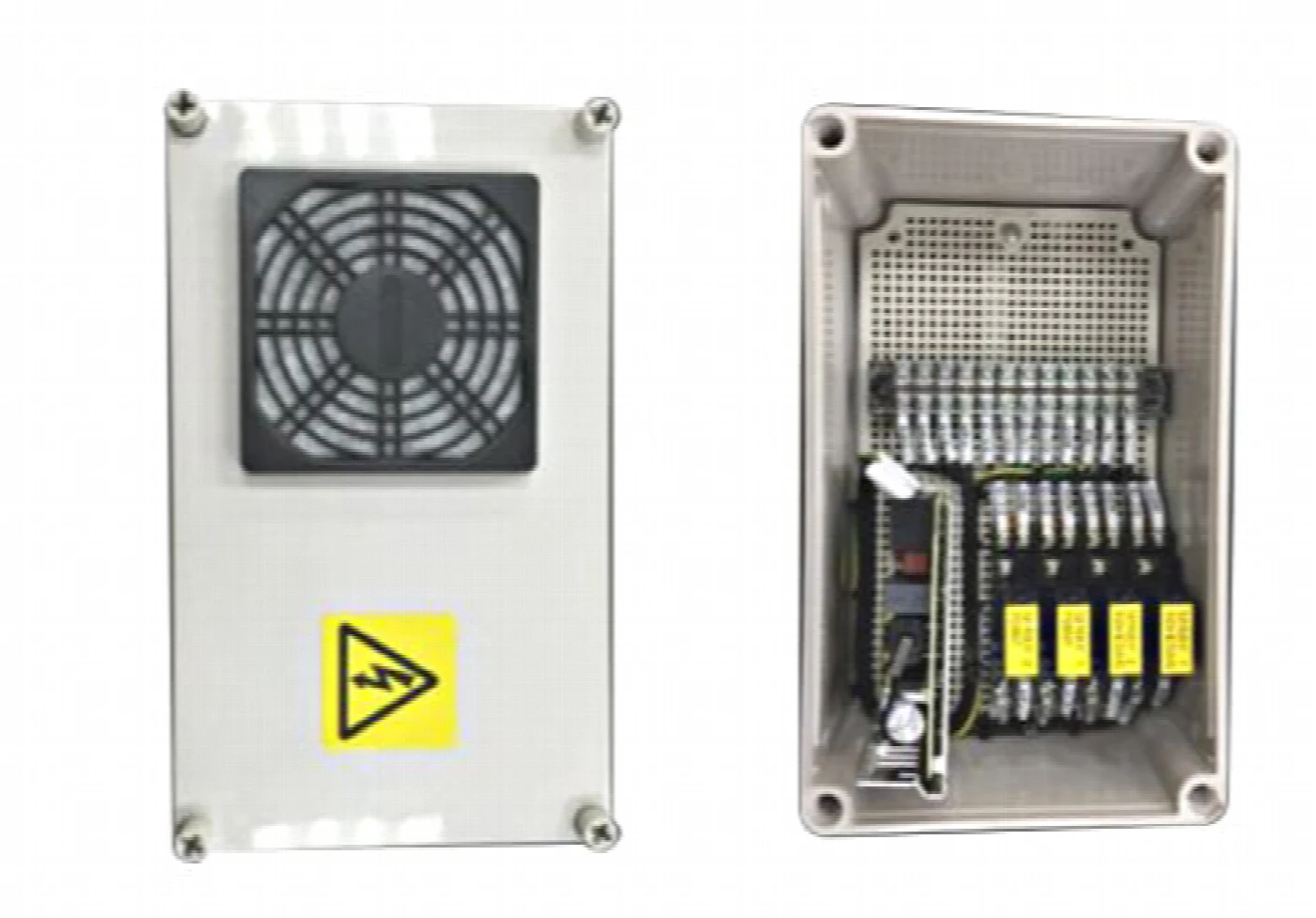

EPC15-GLUE SPRAY CONTROLLER

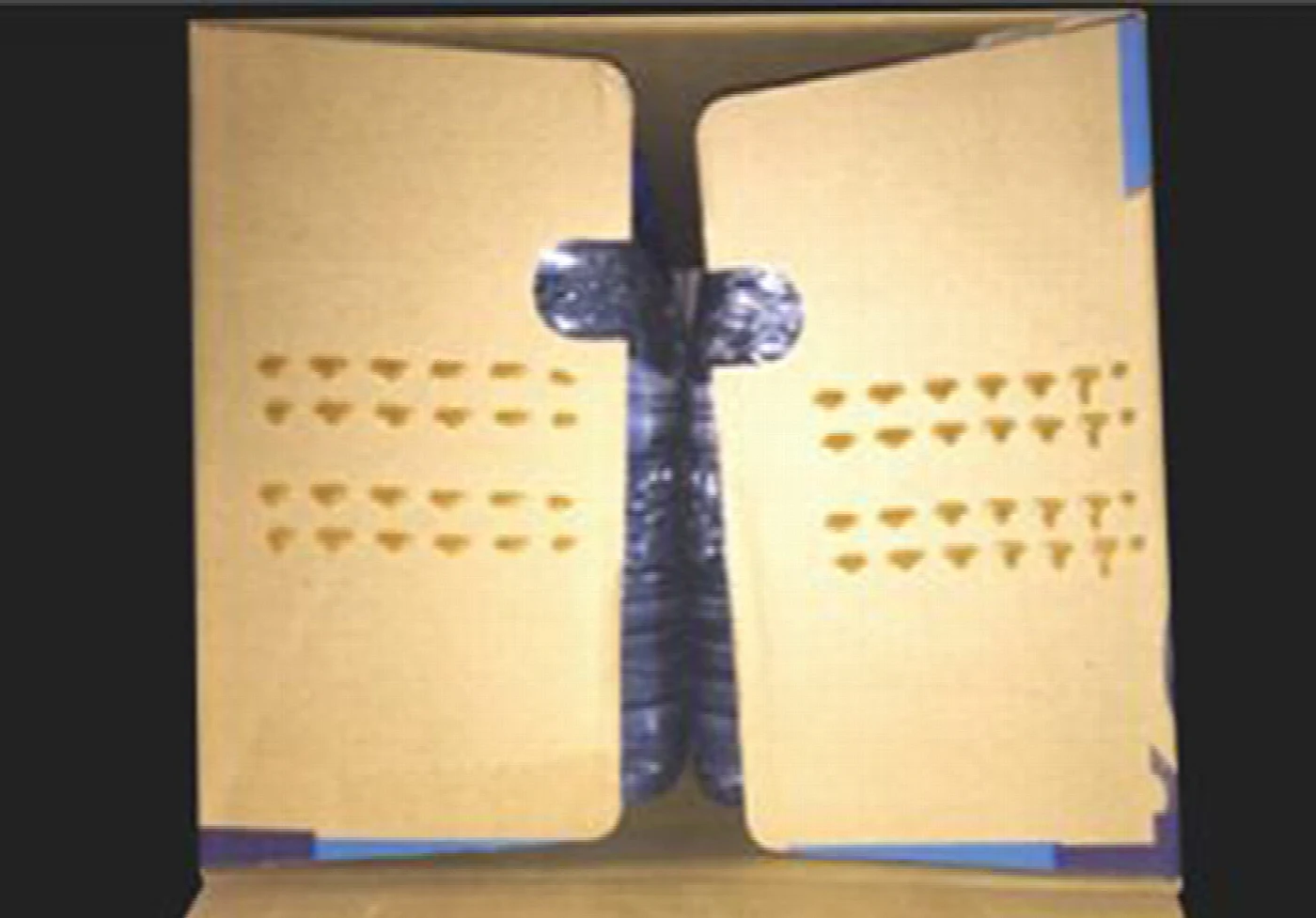

SAVING SPRAY PORTION

Automatic Carton Transfer Mechanism

SYSTEM ADVANTAGES

System Advantages


●	Various product available within one case packer.
●	Machine exit with additional safety covers.
●	Emergency stop on all side of the machinery.
●	Ethernet available for production data transfer to the customer's control system.

SPECIFICATIONS

Item	SFA-SD30
Power Source	Adapted to local electricity source at installation site
Power Capacity	11 KW
Air Pressure	6.0 kg/cm2
Machine Dimensions	L 6363 x W 2750 x H 2200 mm
Air Flow Consumption	1000 L/min
Processing Capacity	30 cartons/min
Operation Control	English / Chinese display system
Packaging Material	Corrugated paper
Hotmelt Glue	Nordson MESA 9

VIDEO

SFA SD-30 (Tray Packer + Shrink Packer)

SFA SD-30 (Tray Packer + Shrink Packer)

SFA-SD30 Automatic High Speed Case Packer (Double Layer Case Packer)

SFA-SD30 Automatic High Speed Case Packer (Double Layer Case Packer)
