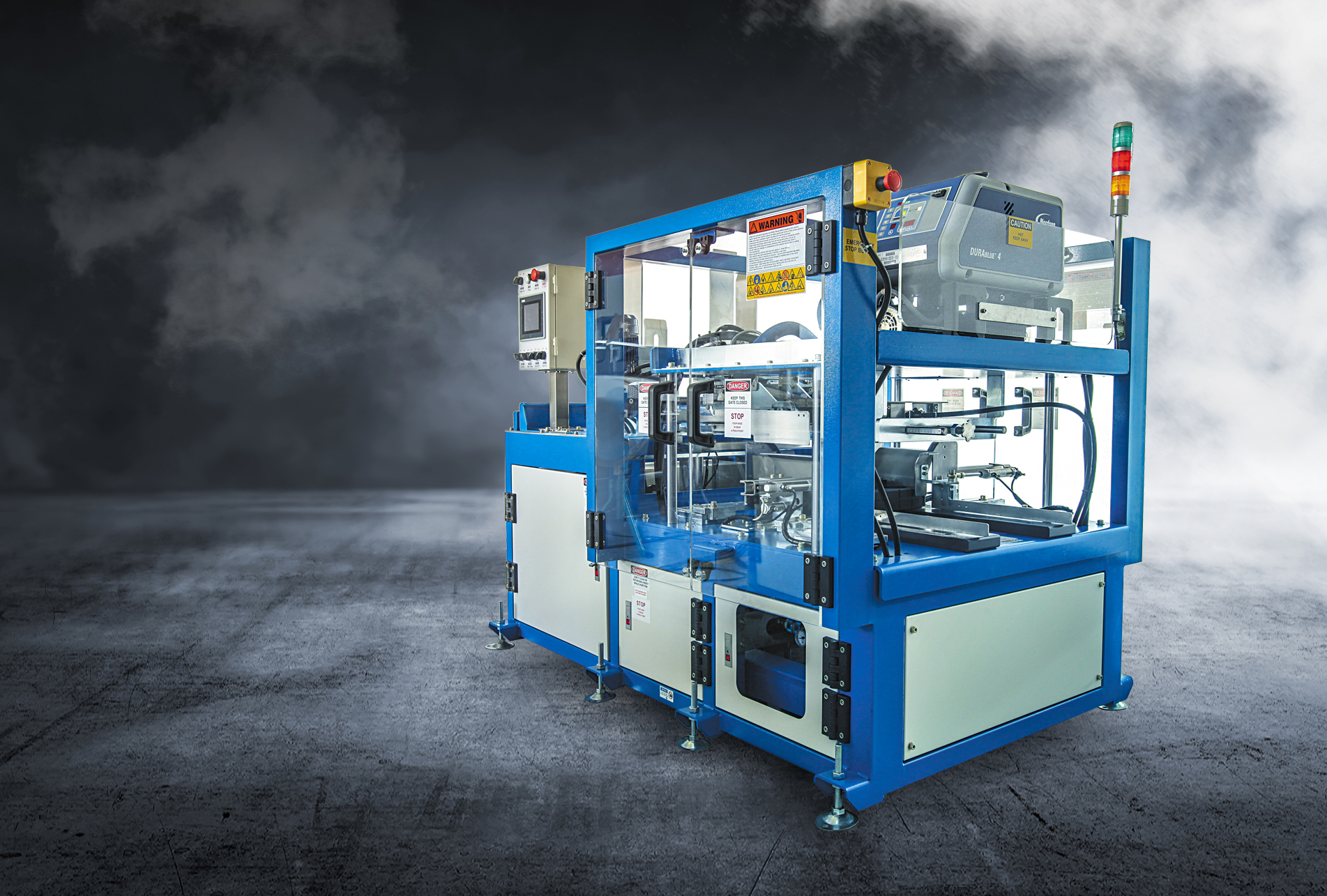

SFA-6092 Automatic Carton Forming Machine

SFA-6092

Automatic Carton Forming Machine


Human-Computer Interaction Design.

Tray Forming Operation.

The large processing range for carton size.

Glue spraying distance is control by encoder, ensuring consistent glue spraying length on each tray and permit adjustment and memorizing at any time.





MODEL SFA-6092
Power Source According to Installation Place, Local Electricity Sources
Power Capracity 1.5 KW
Air Pressure 5.0~8.0 kg/cm2
Machine Dimensions L : 2040.5 x W : 1324 x H : 1438 mm
Machine Weight 750 Kg
Processing Caprcity 25 case/min
Dperation Control English / Chinese Display System
