SFA-SD30 Automatic High Speed Case Packer
FOOD & BEVERAGE
Production Line Planning
& Machinery Manufacture
DESIGNED AROUND YOU.

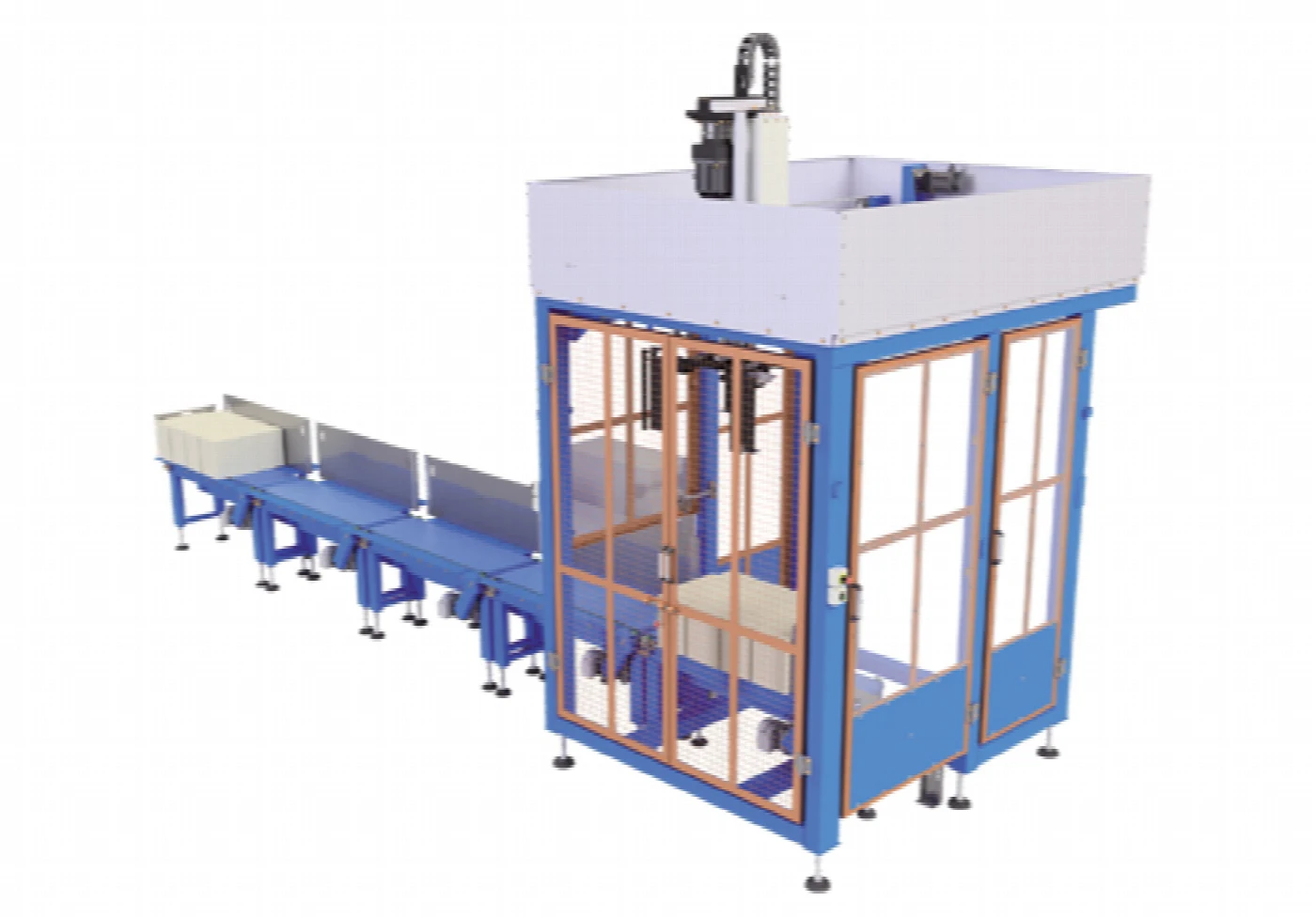

SFA-SD30
Automatic High Speed Case Packer
SFA-SD30
Automatic High Speed Case Packer
|
|
● |
Human-Computer Interaction Design. |
● |
Fully Wrap Around carton packaging and Tray Packing Combination Operation. |
● |
Parameters can be set and modified on the screen.
|
● |
Wheel handle for minimization of changeover times, in order to quiktly switch from a production to another one. |
● |
All moveable parts and Electrical wiring are cover up for safety issue.
|
● |
Machine operation with less noise. |
● |
Missing/Fallen loose product detection before the tray/case forming unit. |
● |
Glue spraying distance is control by encoder, ensuring consistent glue spraying length on each carton and permit adjustment and memorizing at any time. |
|
|
|
Glue Saving Controller |
● |
Glue spacing can be adjusted, Optimizing the allocation of the spray. |
● |
High Accuracy/Stabilized spray control. Multi-Program Memory. Highest efficiency improvement, Save 30~50% Glue Using per year.
|
|
|
EPC15-GLUE SPRAY CONTROLLER |
|
SAVING SPRAY PORTION |
|
|
|
|
● |
Various product available within one case packer. |
● |
Machine exit with additional safety covers. |
● |
Emergency stop on all side of the machinery. |
● |
Ethernet available for production data transfer to the customer's control system. |
|
MODEL |
SFA-SD30 |
Power Source |
According to Installation Place, Local Electricity Sources |
Power Capracity |
11 KW |
Air Pressure |
6.0 kg/cm2 |
Machine Dimensions |
L : 6363 x W : 2750 x H : 2200 mm |
Air Flow Consumption |
1000 Kg |
Processing Caprcity |
30 cartons/min |
Dperation Control |
English / Chinese Display System |
Packaging Material |
Corrugated Paper |
Hotmelt Glue |
Nordson MESA 9 |
