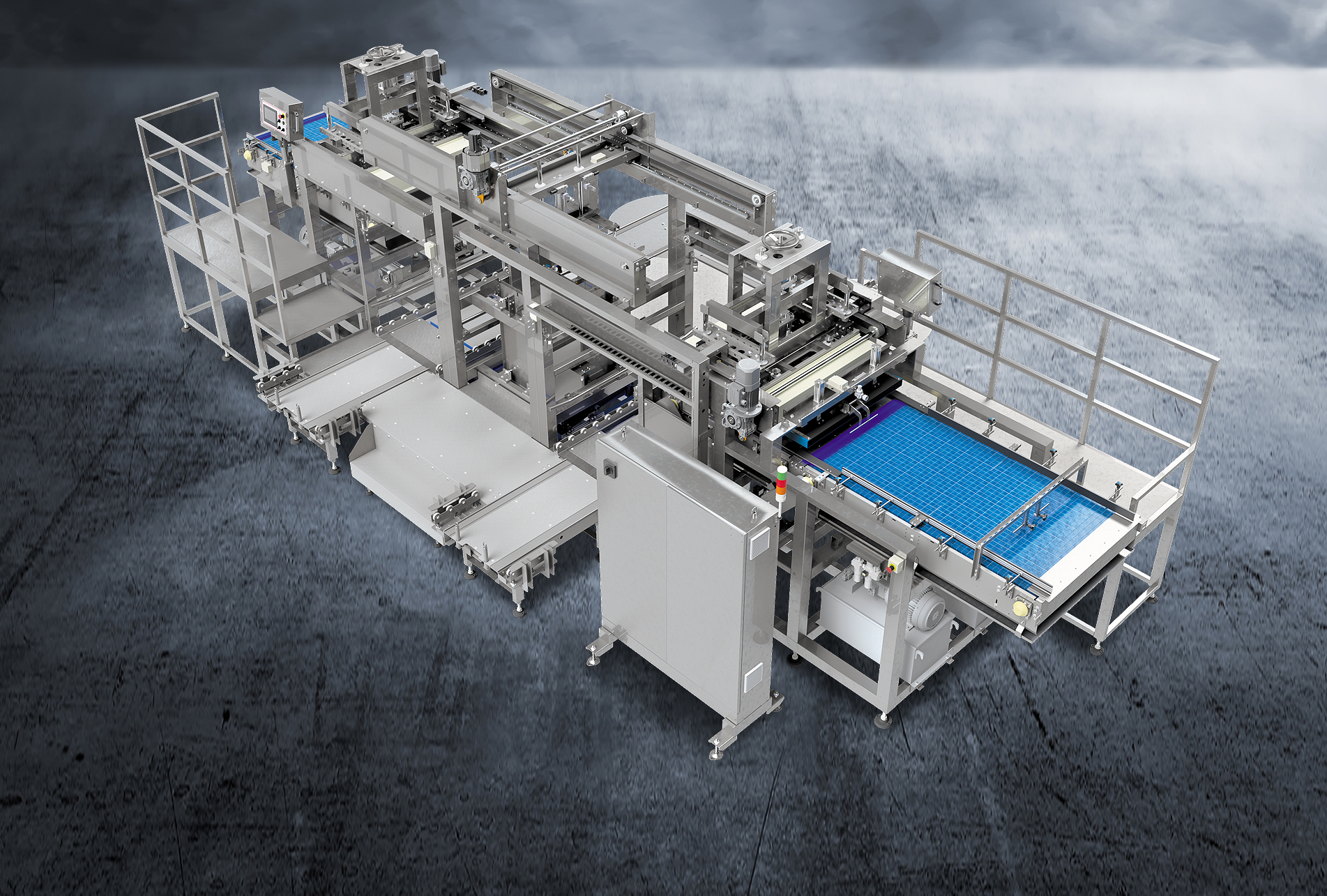

SFA-5437
Cage Cart Orienting Machine
( Loader & Un Loader )
SFA-5437
Cage Cart Orienting Machine
( Loader & Un Loader )
| |
|
| ● |
This machine is special for categories of coffee, bottles, milk cans, fish and meat cans o other containers packing use sterilized by high temperature method for handling.
|
TECHNOLOGICAL PROCESSES
| ● |
Products are placed in order based on size pushing to the cage cart for the pile up. Each tray is placed by a pallet for cans separation. |
| |
Cage cart with products piling up in order is pushed to sterilizer for high temperature handling. |
| |
After the sterilization, products are depalletized layer by layer for next packing procedure. |
|
| |
|
| ● |
High operational safety due to robust standard construction. |
| ● |
Economical continuous operation due to high degree of availability. |
| ● |
Easy operation. |
| ● |
Low maintenance. |
|
| MODEL |
SFA-5437 |
| Power Source |
Adapted to Local Electricity Sources at Installation Place |
| Power Capacity |
6 KW |
| Air Pressure |
5.0~7.0 kg/cm2 |
| Machine Dimensions |
L : 8770 x W : 5445 x H : 2376 mm |
| Machine Weight |
3400 kg |
| Processing Capacity |
500~600 bottles/min |
| Operation Control |
English/Chinese Display System for User-Friendly Interface |
