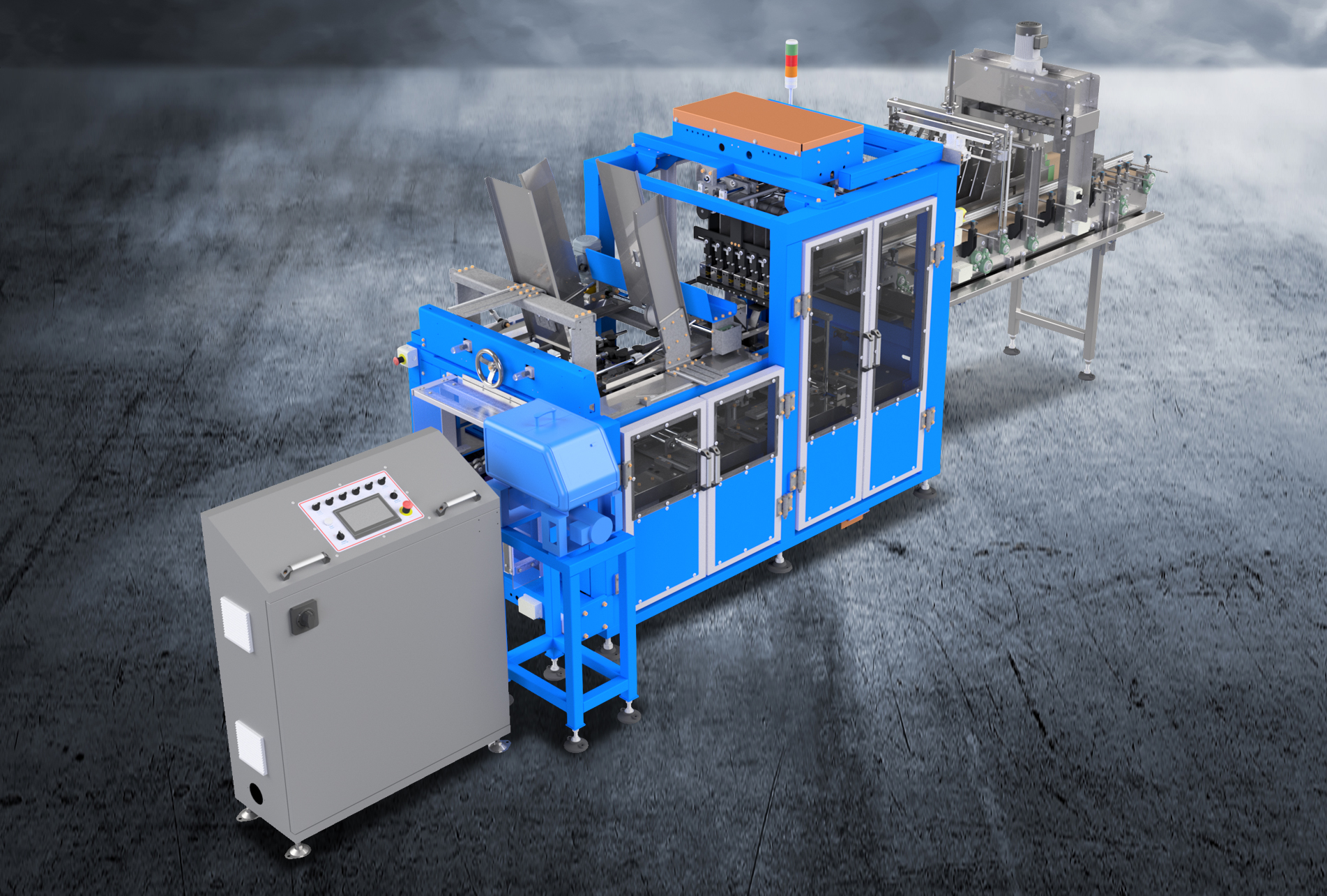

SFA-2224-L-SM AUTOMATIC TRAY PACKER

SFA-2224-L-SM

SFA-2224-L-SM AUTOMATIC TRAY PACKER


Human-Computer Interaction Design.

Tray Packing operation.

The large processing range comprises PE, PET, PP Bottles, Cans and aluminum cans etc.

Parameters can be set and modified on the screen.

Glue Spraying distance is control by encoder, ensuring consistent glue spraying length on each carton and permit adjustment and memorizing at any time.

Minimization of the changeover times, in order to quickly Switch from a production to another one.

All movable parts are provided with grease nozzle for lubrication. Hard-to-reach bearings located at the machine bottom are centralized lubrication at outside through oil tubes.

CE Certification.






MODEL SFA-2224-L-SM
Power Source Adapted to Local Electricity Sources at Installation Place
Power Capacity 15 KW
Air Pressure 6.0 kg/cm2
Machine Dimensions L : 6145 x W : 1780 x H : 2107 mm
Machine Weight 1500 Kg
Air Flow Consumption 320 L/m
Processing Capacity 25~30 cases/min
Operation Control English/Chinese Display System for User-Friendly Interface
Packaging Material Corrugated Paper
Hotmelt Glue Nordson
